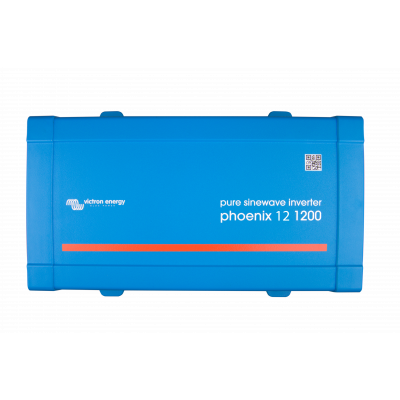

Victron Energy Phoenix 12v 1200VA Pure Sine wave inverter allows you to power domestic equipment – requiring 230VAC – using ‘leisure’ or ‘automotive’ batteries rated at 12V

Suitable for all cars, vans, campervans, motorhomes, race vans, Off Road, commercials and industrial vehicles

Features

VE.Direct communication port

The VE.Direct port can be connected to:

A computer (VE.Direct to USB interface cable needed)
Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:

Low battery voltage alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage 210 – 245V
Frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Monitoring:

In- and output voltage, % load and alarms
Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

DC connection with screw terminals

Specification
Brand

Victron Energy

Manufacturer Part Number

PIN122121400

GTIN

8719076054948

Voltage

12V

Cont. output power at 25ºC

1200VA

Peak Power

2200W

Output AC Voltage

230V

Protection Category

IP21

Efficiency

91%

Bluetooth Enabled

No

Plug Type

UK

Dimensions

H117 x W232 x D362mm

Weight

7.4Kg

Warranty

5 Years
